E14 Ticket: RBAC - Add role for Create connector at child domain - V1



Version 1

1. New-SendConnector is not present in the role definition of the current user.




2. About Send-Connector role is
   http://technet.microsoft.com/en-us/library/dd876913.aspx

   The Send Connectors management role enables administrators to manage transport Send connectors in an organization.

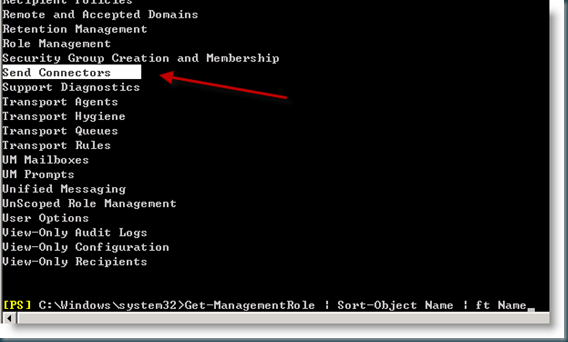

3. Find Send Connectors Role
   [PS] C:\Windows\system32>Get-ManagementRole | Sort-Object Name | ft Name




4.
   [PS] C:\Windows\system32>Get-ManagementRole -Identity "Send Connectors" | fl


   RunspaceId                  : 388383d1-ae70-4f8d-8c00-c07f31dc1594 RoleEntries                 : {(Microsoft.Exchange.Management.PowerShell.E2010) Set-SendConnector -AddressSpaces -Authe                               nticationCredential -Comment -Confirm -ConnectionInactivityTimeOut -Debug -DNSRoutingEnab                               led -DomainController -DomainSecureEnabled -Enabled -ErrorAction -ErrorPolicies -ErrorVar                               iable -Force -ForceHELO -Fqdn -Identity -IgnoreSTARTTLS -IsCoexistenceConnector -IsScoped                               Connector -LinkedReceiveConnector -MaxMessageSize -Name -OutBuffer -OutVariable -Port -Pr                               otocolLoggingLevel -RequireOorg -RequireTLS -SmartHostAuthMechanism -SmartHosts -SmtpMaxM                               essagesPerConnection -SourceIPAddress -SourceTransportServers -TlsAuthLevel -TlsDomain -U                               seExternalDNSServersEnabled -Verbose -WarningAction -WarningVariable -WhatIf, (Microsoft.                               Exchange.Management.PowerShell.E2010) New-SendConnector -AddressSpaces -AuthenticationCre                               dential -Comment -Confirm -ConnectionInactivityTimeOut -Custom -Debug -DNSRoutingEnabled                               -DomainController -DomainSecureEnabled -Enabled -ErrorAction -ErrorPolicies -ErrorVariabl                               e -Force -ForceHELO -Fqdn -IgnoreSTARTTLS -Internal -Internet -IsCoexistenceConnector -Is                               ScopedConnector -LinkedReceiveConnector -MaxMessageSize -Name -OutBuffer -OutVariable -Pa                               rtner -Port -ProtocolLoggingLevel -RequireOorg -RequireTLS -SmartHostAuthMechanism -Smart                               Hosts -SmtpMaxMessagesPerConnection -SourceIPAddress -SourceTransportServers -TlsAuthLeve                               l -TlsDomain -Usage -UseExternalDNSServersEnabled -Verbose -WarningAction -WarningVariabl                               e -WhatIf, (Microsoft.Exchange.Management.PowerShell.E2010) Write-AdminAuditLog -Comment                               -Confirm -Debug -DomainController -ErrorAction -ErrorVariable -OutBuffer -OutVariable -Ve                               rbose -WarningAction -WarningVariable -WhatIf, (Microsoft.Exchange.Management.PowerShell.                               E2010) Remove-SendConnector -Confirm -Debug -DomainController -ErrorAction -ErrorVariable                                -Identity -OutBuffer -OutVariable -Verbose -WarningAction -WarningVariable -WhatIf, (Mic                               rosoft.Exchange.Management.PowerShell.E2010) Get-TransportServer -Debug -DomainController                                -ErrorAction -ErrorVariable -Identity -OutBuffer -OutVariable -Verbose -WarningAction -W                               arningVariable, (Microsoft.Exchange.Management.PowerShell.E2010) Get-SendConnector -Debug                                -DomainController -ErrorAction -ErrorVariable -Identity -OutBuffer -OutVariable -Verbose                                -WarningAction -WarningVariable, (Microsoft.Exchange.Management.PowerShell.E2010) Get-Re                               ceiveConnector -Debug -DomainController -ErrorAction -ErrorVariable -Identity -OutBuffer                               -OutVariable -Server -Verbose -WarningAction -WarningVariable, (Microsoft.Exchange.Manage                               ment.PowerShell.E2010) Get-ExchangeServer -Debug -Domain -DomainController -ErrorAction -                               ErrorVariable -Identity -OutBuffer -OutVariable -Status -Verbose -WarningAction -WarningV                               ariable, (Microsoft.Exchange.Management.PowerShell.E2010) Get-DomainController -Credentia                               l -Debug -DomainName -ErrorAction -ErrorVariable -Forest -GlobalCatalog -OutBuffer -OutVa                               riable -Verbose -WarningAction -WarningVariable} RoleType                    : SendConnectors ImplicitRecipientReadScope  : Organization ImplicitRecipientWriteScope : Organization ImplicitConfigReadScope     : OrganizationConfig ImplicitConfigWriteScope    : OrganizationConfig IsRootRole                  : True IsEndUserRole               : False MailboxPlanIndex            : Description                 : This role enables administrators to manage transport Send connectors in an organization. IsDeprecated                : False AdminDisplayName            : ExchangeVersion             : 0.12 (14.0.451.0) Name                        : Send Connectors DistinguishedName           : CN=Send Connectors,CN=Roles,CN=RBAC,CN=MSFT,CN=Microsoft Exchange,CN=Services,CN=Configur                               ation,DC=corp,DC=com Identity                    : Send Connectors Guid                        : b000eb8b-052e-4cba-9f19-fe0fb2b7aa36 ObjectCategory              : corp.com/Configuration/Schema/ms-Exch-Role ObjectClass                 : {top, msExchRole} WhenChanged                 : 4/30/2012 3:19:02 PM WhenCreated                 : 10/12/2009 3:58:26 PM WhenChangedUTC              : 4/30/2012 7:19:02 AM WhenCreatedUTC              : 10/12/2009 7:58:26 AM OrganizationId              : OriginatingServer           : BQTDC01.MSFT.corp.com IsValid                     : True




5. Add role "Send-Connectors" to Role Group “BQC E14 Copy of Server Management @BQC_E14_Servers”

   [PS] C:\Windows\system32>New-ManagementRoleAssignment -SecurityGroup "BQC E14 Copy of Server Management @BQC_E14_Servers
   " -Role "Send Connectors"


6. After that,

   [PS] C:\>Get-RoleGroup -Identity "BQC E14 Copy of Server Management @BQC_E14_Servers" -DomainController rdc02.corp.com | fl
