Exchange 2007 Database Portability (資料庫可攜)

-



Exchange 2007 Database Portability 資料庫可攜測試

資料庫可攜性功能可免除上述限制，並解決這些限制所帶來的問題。資料庫可攜性是基於下列原因而執行：

  • 免除復原程序中容易犯錯的人工步驟，進而提高可靠性。
  • 若是遺失叢集信箱伺服器的案例，則必須先復原叢集信箱伺服器，用戶端才能存取 Exchange 資料庫。
  • Exchange 信箱資料與伺服器無關，因此存取資料也應該與伺服器無關。
  • 資料庫可攜性可在各種嚴重損壞修復案例中減少端對端復原時間。


LAB目的: 將 IMSS.Virus 這個信箱從BQT-CCR1 上可攜至 BQT-MB07 上

Resolution


1. 位於BQT-CCR1 Server 上的 IMSS.Virus 信箱clip_image004


2. 信箱屬於BQT-CCR1_SSG_JUN 的mailbox store clip_image006

3. 先卸載此資料庫 clip_image008


4. 複製資料庫至BQT-MB07 clip_image010

clip_image012


5. 進行資料庫檢察 ESEUtil /mhclip_image014


6. 新建一樣名稱的Storage Group 及 Mailbox Storeclip_image016

clip_image018


7. 此資料庫要設定可被還原clip_image020


8. 替換資料庫 clip_image022


9. 掛載資料庫 clip_image018[1]


10. 登入OWA 測試 clip_image024


11. OWA 無法存取clip_image026


12. 登入Outlook 測試，還是檢查到搬移前的信箱伺服器 clip_image028

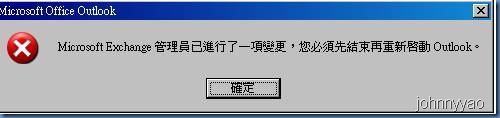

13. 無法開啟Outlook clip_image030


14. 取得信箱資訊 clip_image032


15. 進行信箱設定移轉 clip_image034

clip_image036


16. 信箱移轉完成，需重啟Outlook clip_image038

clip_image040


17 . OWA & Outlook 可正常登入 clip_image042

clip_image044



More Information

1. 資料庫可攜性
2. 如何使用資料庫可攜性將信箱資料庫還原至新伺服器
