LAB: Exchange 2003 RSG & DialTone Part 4

-



1. 判斷Exchange Crash的嚴重損壞或失敗類型問題, Hardware, OS, DB, Store, Service ? 哪個引起的
2. 在依問題來選擇Exchange DR 的策略
3. 以下為Exchange Server Crashed 的DR 回覆步驟
4. 先修復 Windows Server 2003, 用原Exchange server name join domain
clip_image001
5. 安裝或修復OS with service pack及更新相關Hotifx 至原先相同的版本
clip_image003
6. 用DR方式安裝Exchange   setup /disasterrecovery
clip_image005

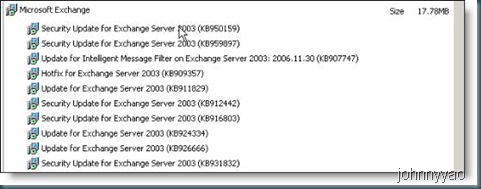

7. 安裝Exchange Service Pack 2 & 原先版本的hotfix
clip_image007
8. 進行ESM相關設定回復
9. 進行dial tone 方式讓使用者先上線
10. 建立相同的Storage Group
clip_image012
11. 建立相同的mailbox store
clip_image013
12. 因backup考量, FSG 是只放PF 不放Mailbox
clip_image015
13. 最快速的方式先取得D to D 的bkf
clip_image017
14. 將bkf file案移動回Exchange Server
15. 直接掛起新建立空的mailbox store
16. 使用者可以登入上線使用
17. 先了解RSG 的使用時機
18. 了解信箱對應關係
19. 建立RSG
clip_image019
20. 新增要還原的Mailbox Store
clip_image020
21. 將資料庫還原到 Exchange Server 2003 的復原儲存群組
clip_image021
22. 加入及設定
clip_image022
23. DB path
clip_image023
24. RSG stand by
clip_image024

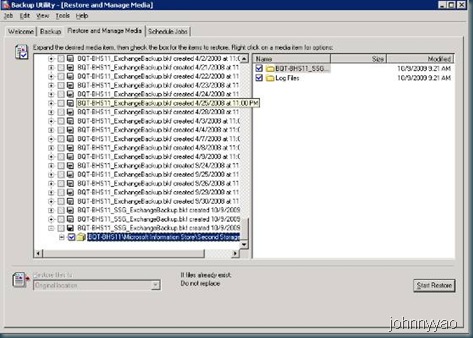

25. 開始還原
clip_image026
26. 還原設定
clip_image027

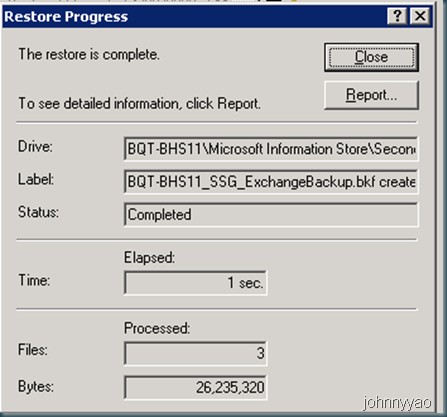

27. 還原完成
clip_image028
28. 還原Report
clip_image030
29. RSG 實體檔案
clip_image032
30. Mount RSG DB
clip_image034

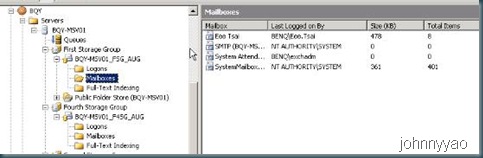

31. 可看到離線使用者mailbox
clip_image036
32. 開始merge 資料
clip_image037
33. Merge 回原DB
clip_image038
34. 選擇Merge
clip_image039
35.
clip_image040
36. Merge 完成
clip_image041
37. 信箱匯回完後就大功告成
38. 再進行backup排程設定
clip_image043
39. Backup 設定只需copy 回 *.vbs & bat, 在設定bks 完後, 排程設定即可執行
clip_image045
40. 其他因不同DR 問題而有不同的DR策略不在此詳述, 請依實際問題狀況參考
