LAB: Exchange 2007 UM Configuration – UM DialPlan

-

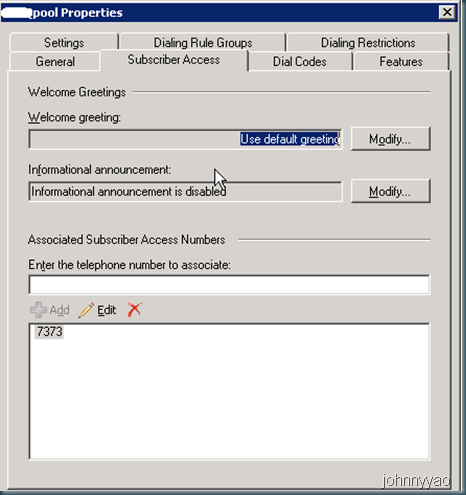

UM DialPlan Configuration



[PS] C:\Program Files\Microsoft\Exchange Server\Scripts>get-umdialplan | fl

NumberOfDigitsInExtension         : 4
LogonFailuresBeforeDisconnect     : 3
AccessTelephoneNumbers            : {7373}
FaxEnabled                        : True
InputFailuresBeforeDisconnect     : 3
OutsideLineAccessCode             :
DialByNamePrimary                 : LastFirst
DialByNameSecondary               : SMTPAddress
AudioCodec                        : Wma
AvailableLanguages                : {zh-TW, en-US}
DefaultLanguage                   : zh-TW
VoIPSecurity                      : SIPSecured
MaxCallDuration                   : 30
MaxRecordingDuration              : 20
RecordingIdleTimeout              : 5
InputRetries                      : 3
InputTimeout                      : 5
UMServers                         : {BQT-UM07}
UMMailboxPolicies                 : {Msftpool ????}
UMAutoAttendants                  : {OCSR2_AA}
WelcomeGreetingEnabled            : False
AutomaticSpeechRecognitionEnabled : True
NDREnabled                        : True
PhoneContext                      : Msftpool.corp.com
WelcomeGreetingFilename           :
InfoAnnouncementFilename          :
OperatorExtension                 :
Extension                         :
MatchedNameSelectionMethod        : Department
InfoAnnouncementEnabled           : False
InternationalAccessCode           :
NationalNumberPrefix              :
CountryOrRegionCode               :
InCountryOrRegionNumberFormat     :
InternationalNumberFormat         :
CallSomeoneEnabled                : True
ContactScope                      : DialPlan
ContactAddressList                :
SendVoiceMsgEnabled               : True
UMAutoAttendant                   :
AllowDialPlanSubscribers          : True
AllowExtensions                   : True
AllowedInCountryOrRegionGroups    : {}
AllowedInternationalGroups        : {}
ConfiguredInCountryOrRegionGroups : {}
ConfiguredInternationalGroups     : {}
UMIPGateway                       : {MsftPool}
URIType                           : SipName
EquivalenceDialPlan               : c411362a-42b7-4d40-8fbc-4e6222da6c63
PromptPublishingPoint             : \\bqt-um07.msft.corp.com\exchangeum
TUIPromptEditingEnabled           : False
FDSPollingInterval                : 5
AdminDisplayName                  :
ExchangeVersion                   : 0.1 (8.0.535.0)
Name                              : Msftpool
DistinguishedName                 : CN=Msftpool,CN=UM DialPlan Container,CN=BEN
                                    Q,CN=Microsoft Exchange,CN=Services,CN=Conf
                                    iguration,DC=corp,DC=com
Identity                          : Msftpool
Guid                              : 522480ac-ef59-4a75-911d-f26561af17d6
ObjectCategory                    : corp.com/Configuration/Schema/ms-Exch-UM-Di
                                    al-Plan
ObjectClass                       : {top, msExchUMDialPlan}
WhenChanged                       : 11/3/2009 2:34:35 PM
WhenCreated                       : 3/9/2009 11:19:50 AM
OriginatingServer                 : DC14.MSFT.corp.com
IsValid                           : True
